3-layers ABA co-extrusion blowing film machine enjoys special advantages and can produce both HDPE and LDPE Film. it improve the physical toughness of film through multi-layers co-extrusion. with one main extruder providing material for outer and inner layer. it reduces one man extruder configurations and achieves energy saving and low consumption.

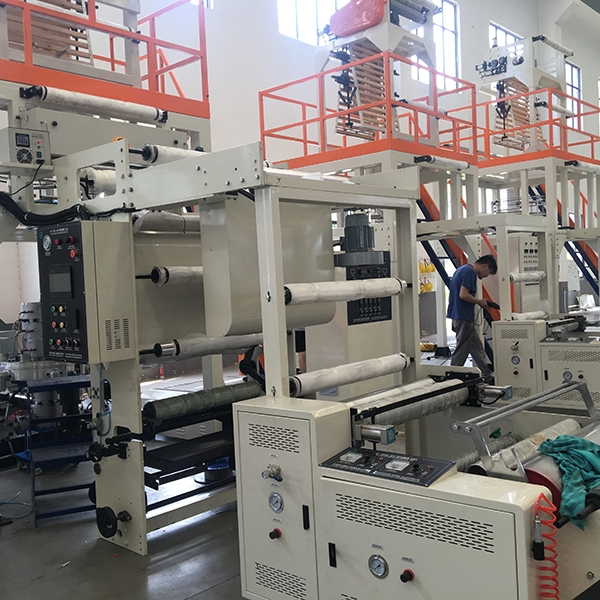

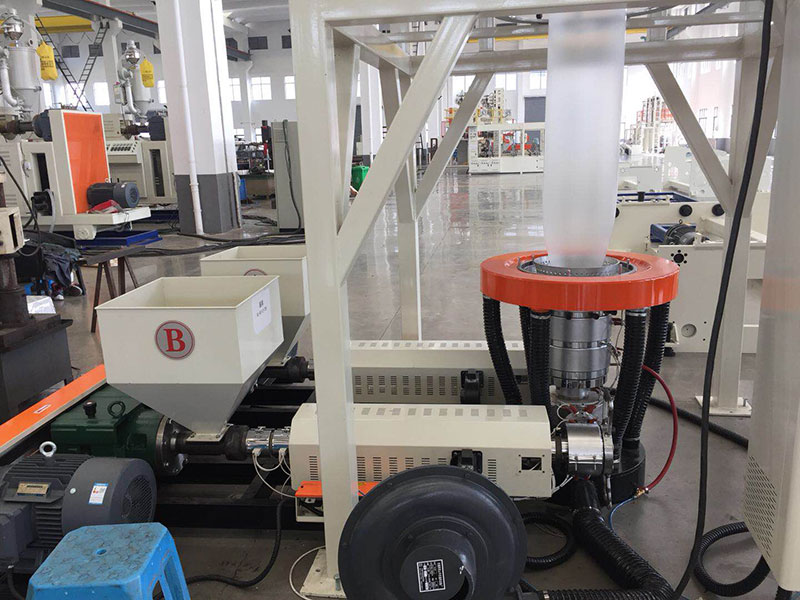

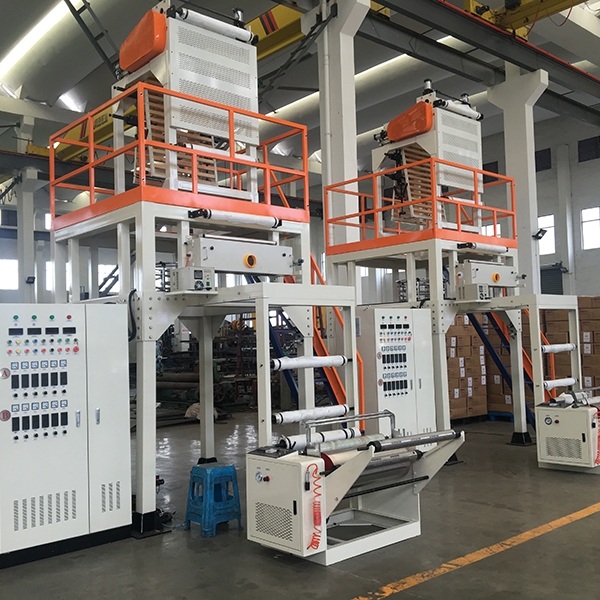

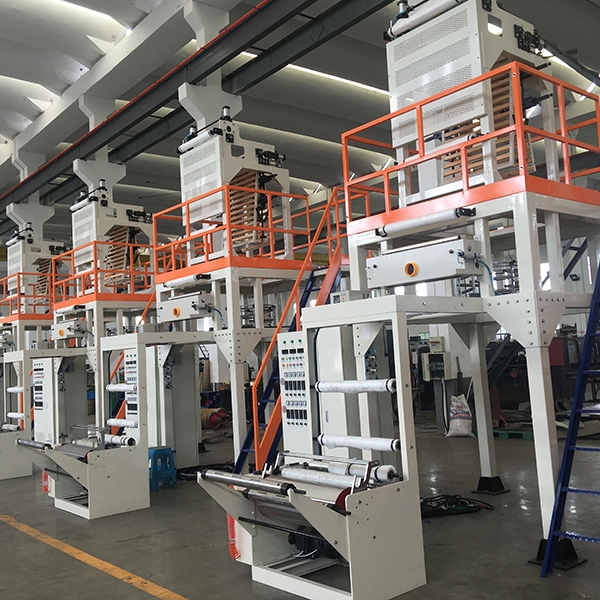

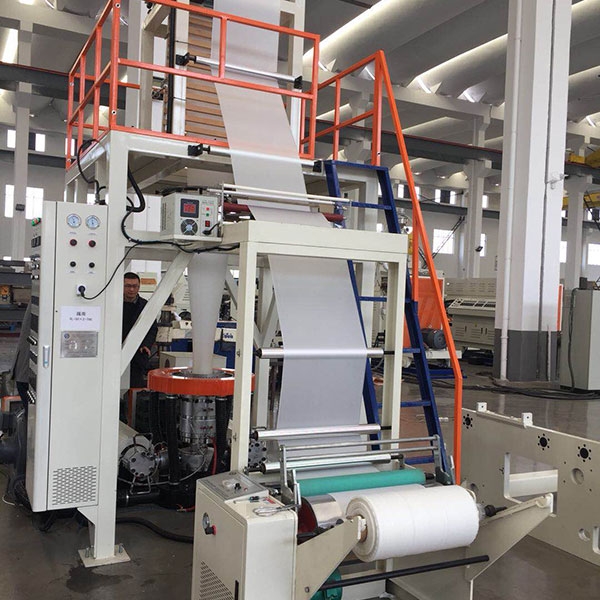

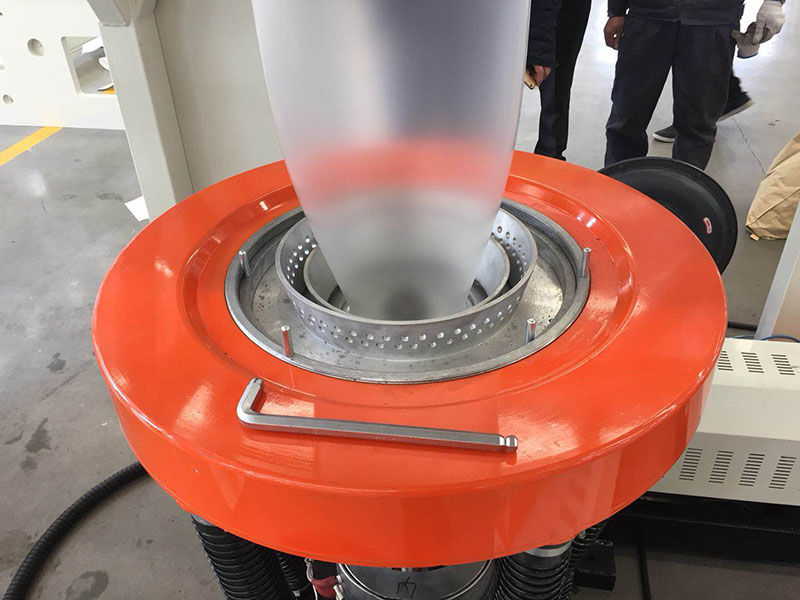

1.Detail showing:
2.Technical parameters:
|
Main technical parameter |
||
|
Screw and barrel |
Φ50mm*2, L=28D (Double screw) |
|
|
Blowing material |
LDPE/HDPE/LLDPE and recycled material and so on |
|
|
Blowing film width |
500mm-750mm |
|
|
Blowing film thickness |
LDPE:0.012mm-0.3mm;HDPE:0.01mm-0.2mm |
|
|
Friction winding,max winding diameter |
500mm |
|
|
Power |
80kw |
|
|
Output |
20-60kg/h |
|
|
Total weight |
6400kg |
|
|
Overall size |
6800mm×2800mm×5600mm |
|
|
Main system feature |
||
|
Extruding system |
Inverter and gear box controlling |
|
|
Drawling up system |
Adjustable motor control |
|
|
Rewind system |

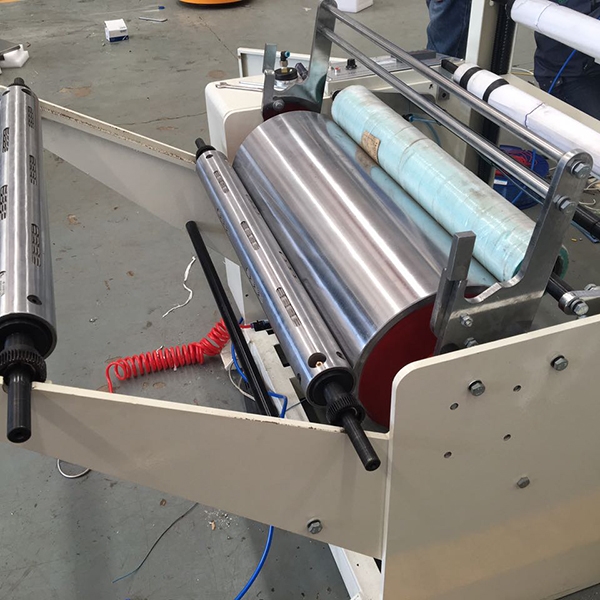

Friction rewind(Automatic) and double roller |
|
3.Satisfying service is our promise
1. Assembly and adjusting the machine for customer, training operator for customer.
2. Quickly respond to the machine fault, supply technical support in 24 hours after fault happen.
3. Engineer service abroad is available, such as adjusting the machine and training the operator for customer.
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
