| Main technical parameter | |
|
Screw and barrel |
Φ45mm, L=28D |
|
Blowing material |
LDPE/HDPE/LLDPE and recycled material and so on |
|
Blowing film width |
100mm-650mm |
|
Blowing film thickness |
LDPE:0.012mm-0.3mm;HDPE:0.01mm-0.2mm |
|
Friction winding,max winding diameter |
600mm |
|
Power |
25kw,3Phase 380V |
|
Output |
10-40kg/h |
|
Total weight |
2000kg |
|
Overall size |
4800mm×2000mm×3800mm |
|
Main system feature |
|
|
Extruding system |
High strength hard tooth surface with high obturation , good reliability ,high capcity, little noise ,long using life ,steady transmission and the other. |
|
Drawling up system |
Adjustable motor control |
|

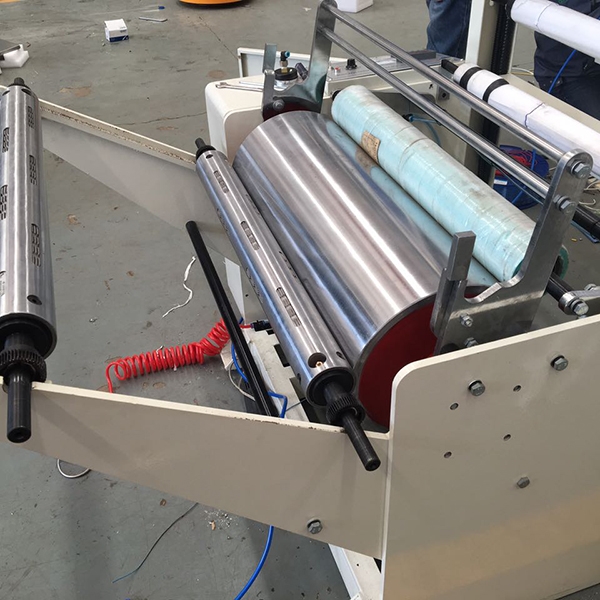

Rewind system |
Friction rewind |
3.After sale service:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
4.Machinery production procession
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
