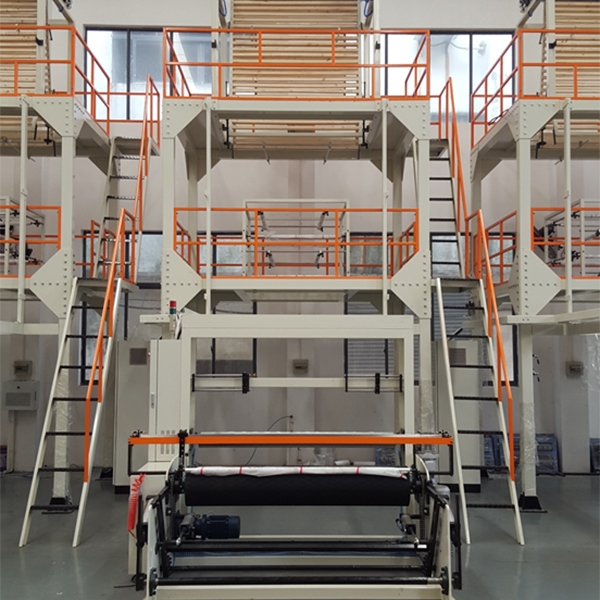

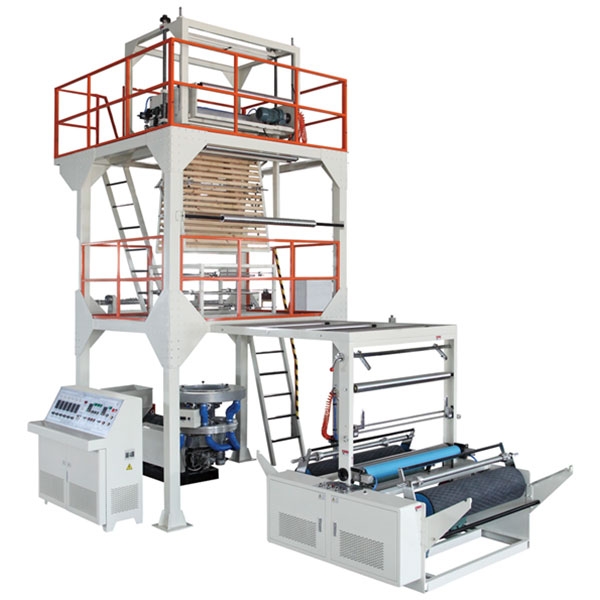

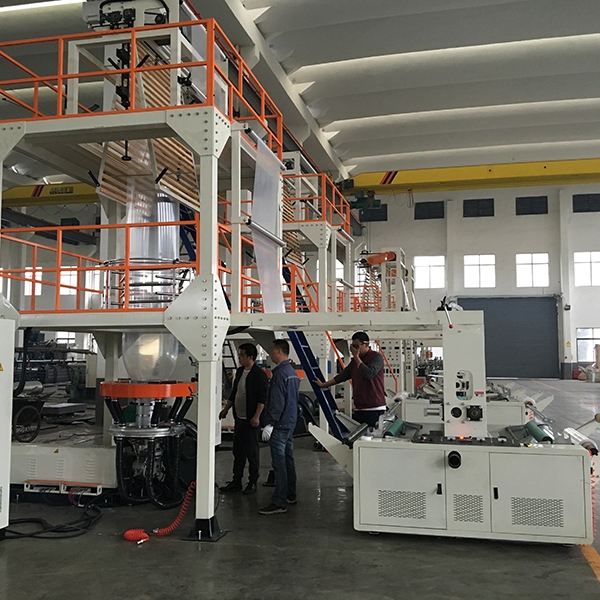

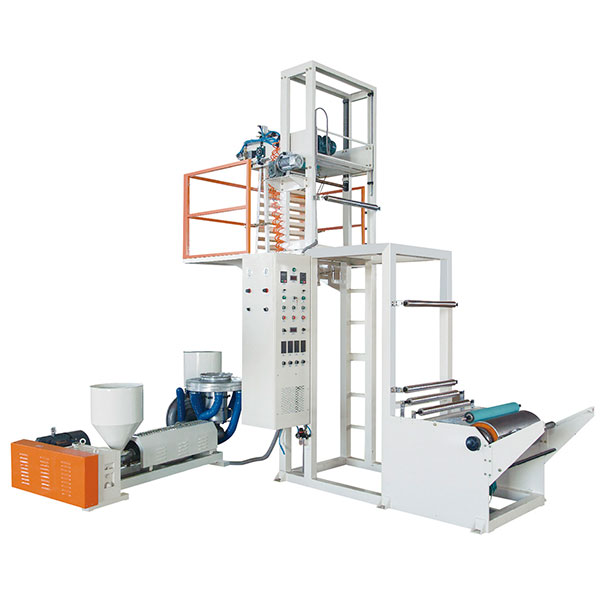

We supply the single layer rotary die-head pe film blowing machine for more than 30 years.
The width of the machine is customized as customers’ need. The machine is equipped with a knife before rewinding to make the film in single layer.

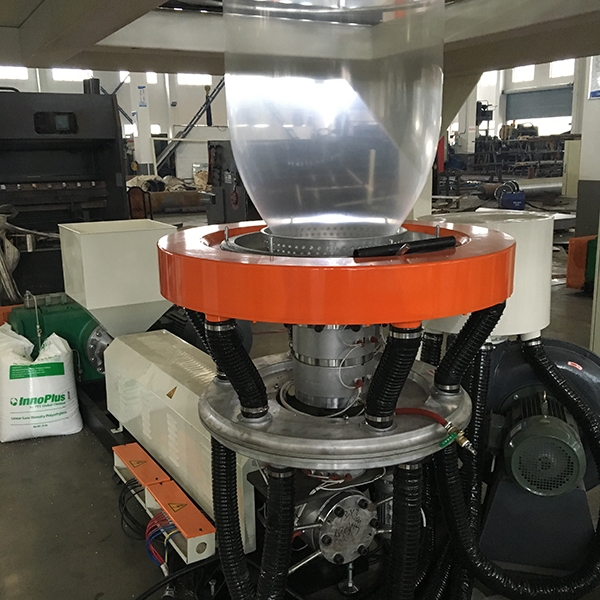

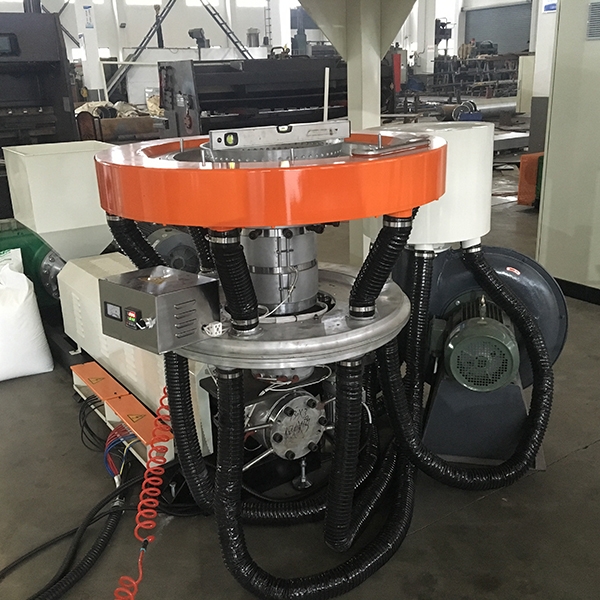

This machine is used for packing goods. With rotating die head, the film is smooth and the quality is better. This machine is suitable for the hdpe and ldpe materials. From the pe granules to the film.
|
Blowing materials |
HDPE, LDPE, recycled PE |
|
Film width |
600-1000mm |
|
Single-face thickness |
LDPE: 0.012-0.3mm |
|
Screw |
Diameter 65mm |
|
Output |
30-75kg/h |
|
Total power |
50kw |
|
Overall size |
6800*2800*5600mm |
3.Production feature and application
Our company has the patent of this film blowing machine and we have exported since 2000. This machine has superb workman ship equipped with good quality spare parts and famous brand electricity parts.
With 35 years experience, we are the professional manufacturer in the field of soft paper &plastic packing machinery and equipments. We have the whole sets of furnishment and techniques in design, manufacture and other after sale service.
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
FAQ:
Factory located: wuxi city, jiangsu province
