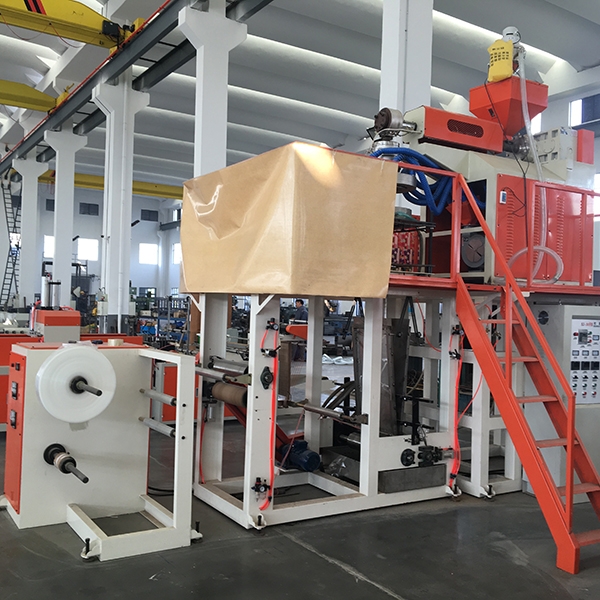

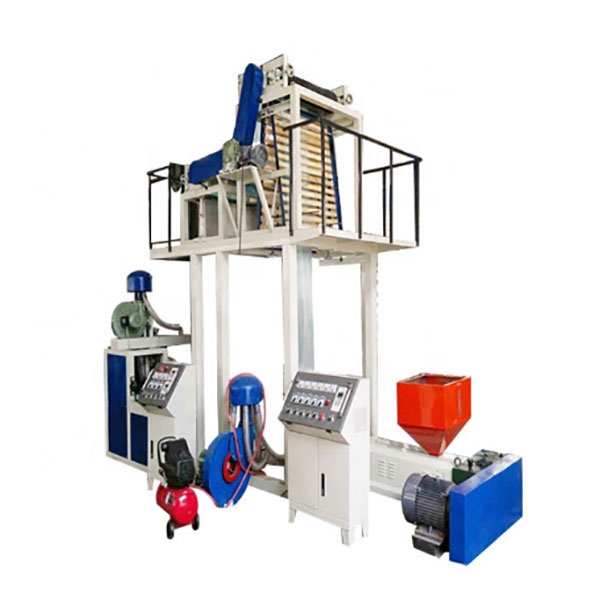

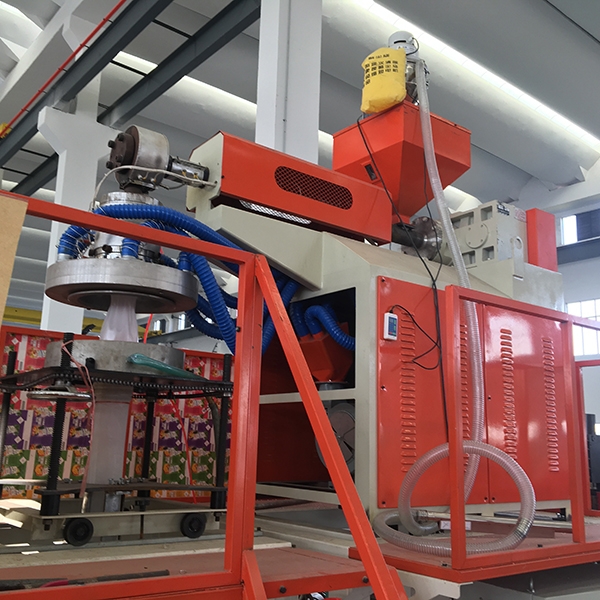

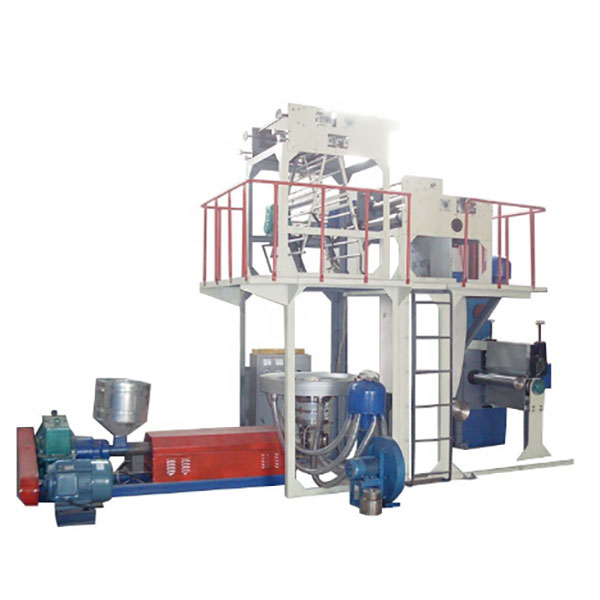

We supply SJ-600 Polypropylene Stretch Film Blowing Machine.
With over 30 years experience, we are professional manufacturer in the field of soft paper and plastic packing. We mainly manufacture the multi-layer coating machine( extrusion laminating machine), roto gravure printing machine, laminating machine, film blowing machine, bag making machine etc.
Looking forward to cooperate with you.
1.Product introduction
①special design of the screw, high output, homo-generous mixing excellent quality.
②Whole consideration & optimum design, easy for operating and maintenance.
③Standardize spare parts, easy to be replaced and easy to equip accessories, such as auto loader, surface static treater(corona) or rotating die device, and etc.
2.Product specification
|
Film width |
100-600mm |
|
Thickness of felm(mm) |
0.01-0.1mm |
|
Output |
30kg/h |
|
Total power |
20KW |
|
Overall size |
4500*2000*3500mm |
|
Screw |
Diameter: 60mm |
|
Material: 38CrMoAl, deal with Nitride |
|
|
L/D: 28:1 |
|
|
Heater |
Ceramic heater |
|
Die heat |
Steel #45 |
|
Gear box |
Import from Taiwan(water cooling reducer, hard tooth surface) |
|
Motor |
Shanghai Brand or Zhejiang Brand |
|
Contactor |
DELIXI |
|
Inventor |
Delta brand |
|
Pneumatic element |
Airtac from Taiwan |
|
Rewinding |
Friction rewinding,double rewinding |
3.Product feature and application

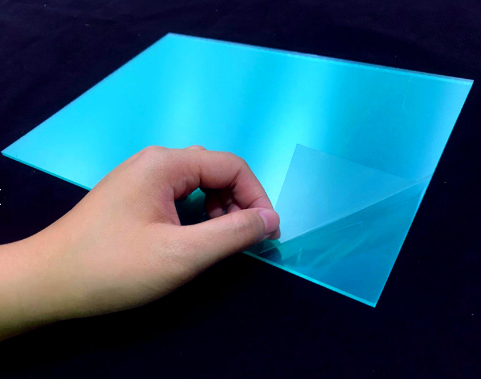

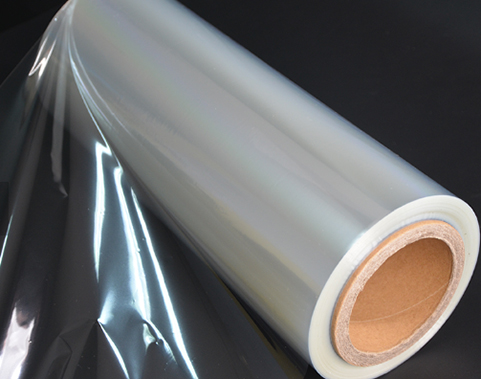

PP film is used for many common packaging applications such as cigarette, candy, snack and food warps. It also can be used for shrink warp, tape liners, diaper and sterile warp used in medical applications.
Factory covers 35000 square meter areas, owns the high quality technical team. The whole production process is strictly regulated in accordance with the ISO9001 quality management standard CE certification. Now our product are hot sale in domestic market, and export to southeast Asia, Europe, Africa and other regions.
6.Delivery, shipping and service
Delivery time: according to customer’s requirements and the amount of machines, we will try our best to finish the machines as soon as possible. Normally 35 working days after we get the deposit.

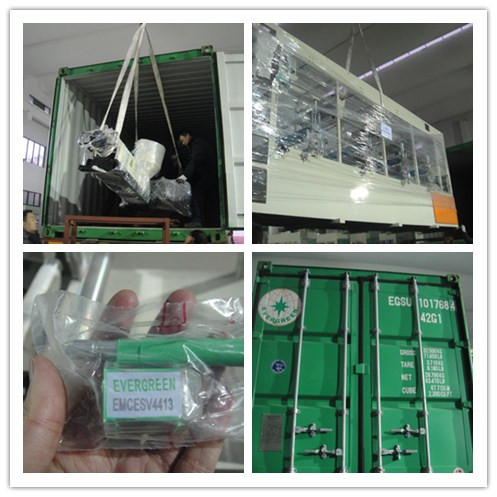

Shipping:

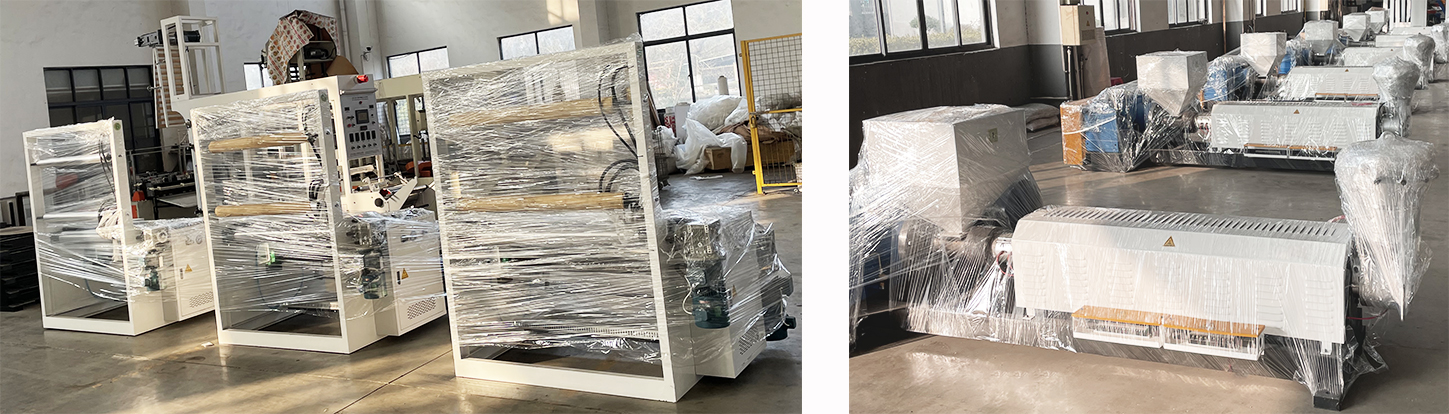

Before shipping, we will separate our machines piece by piece and pack up with stretch film. After calculating the space for all the machines, we will order the container and load. During this process, we will send photos to our customer.
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
FAQ:
Factory located: wuxi city, jiangsu province
