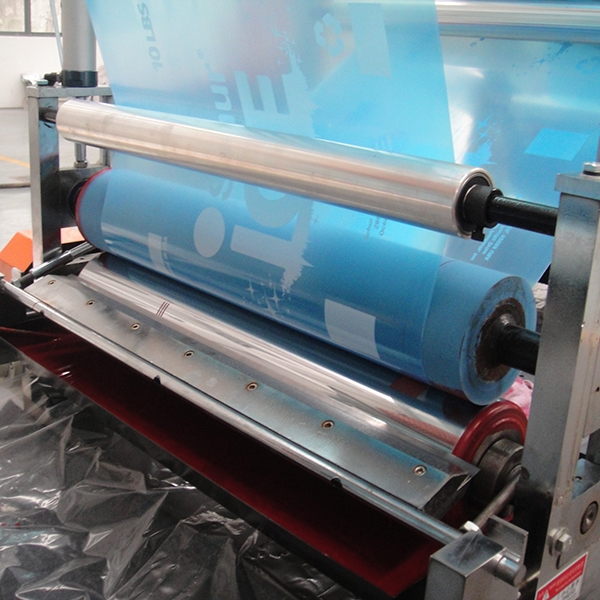

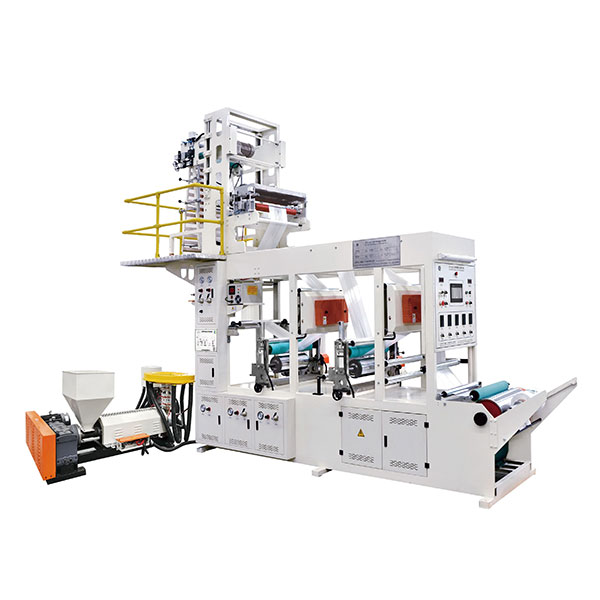

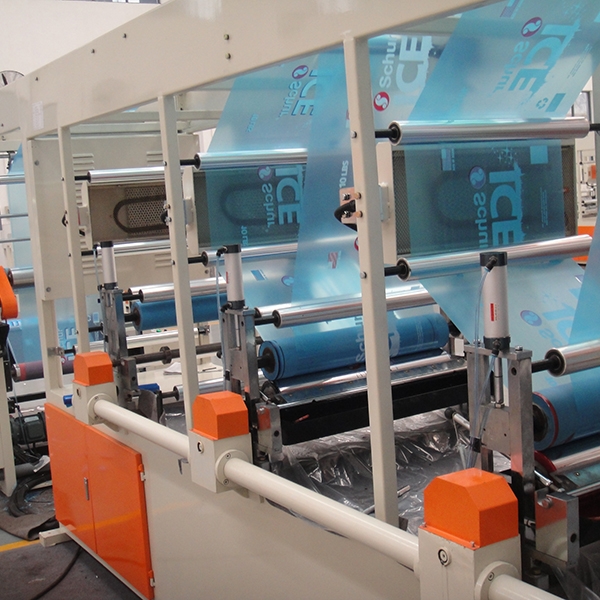

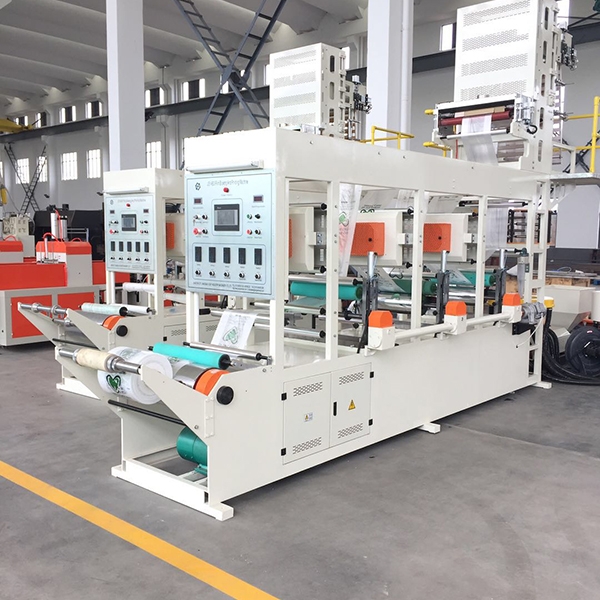

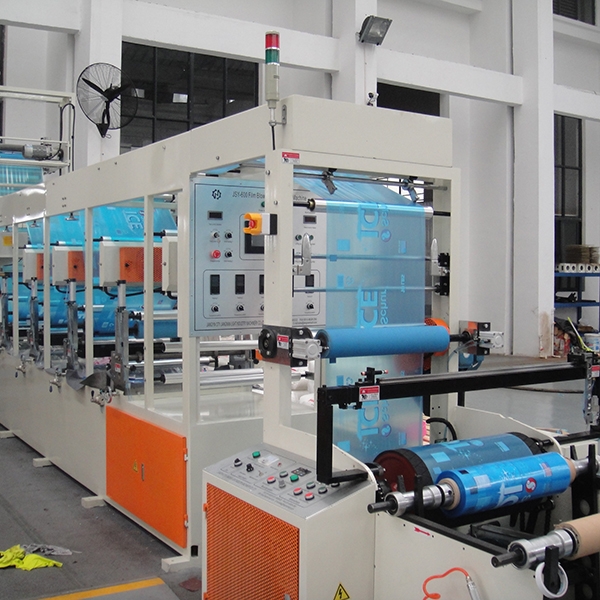

JSY-600 Film blowing and printing machine used for producing soft plastic package bag, it can blow and print at the same time with printing in both sides,the materials is HDPE,LDPE ,dissoluble plastic and PLA and PBAT , recycle material and so on .
1.Features:

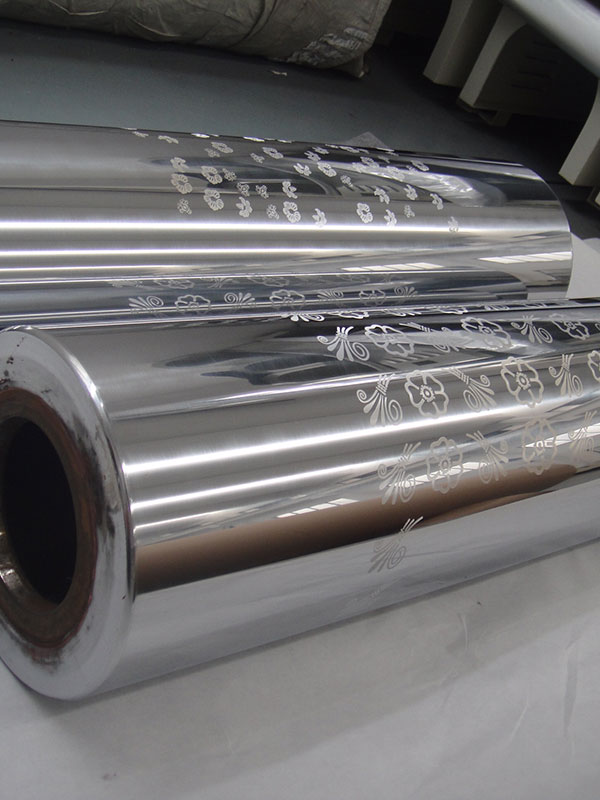

1) This plastic film extruder and gravure printing machine line Applicable to blow plastic films like LDPE,HDPE,LLDPE,PLA+PBAT etc.
2)Integrate film blowing and printing. as one line.Save labor force, working space, and improve the quality of products and economic profits.
3) Widely used for food, cloth, garbage bag, vest bag, etc.
4)The farinfrared tube drying unit can keep drying at 50%/min so as to make picture clear and exquisite.

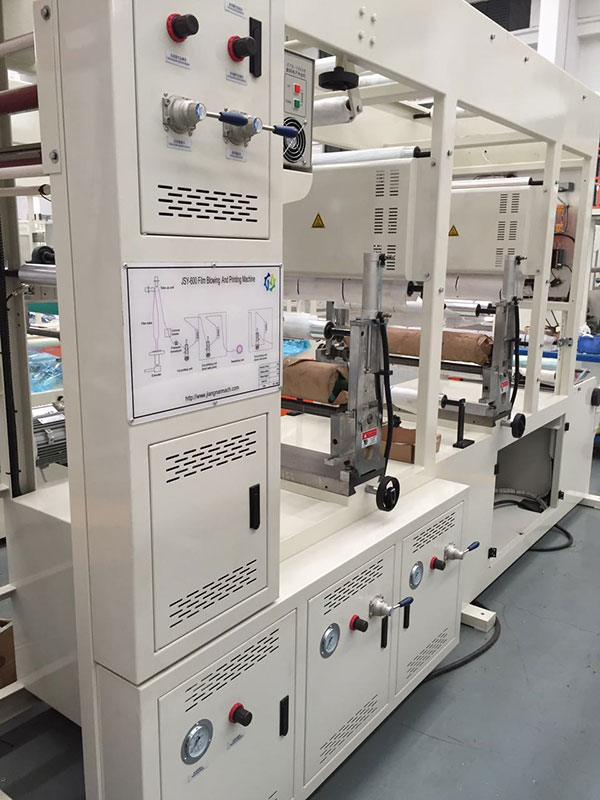

2.Production Details:

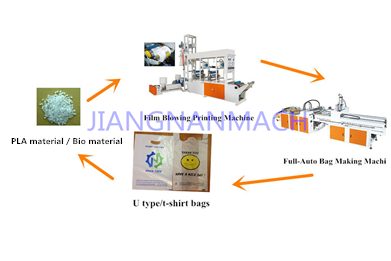

3.The process of PLA carrier bags making:
5.Specification :
| Main technical parameter | |
|
Spares |
Details |
|
For example (Type) |
JSY-600(2color online printing) |
|
Screw and barrel |
Φ50mm, L=28D (Single screw) |
|
Blowing material |
Professional LDPE/LLDPE/PLA and recycled material and so on |
|
Blowing film width |
100mm-550mm |
|
Blowing film thickness |
LDPE:0.012mm-0.3mm;HDPE:0.01-0.2mm |
|
Friction winding,max winding diameter |
500mm |
|
Power |
26 kw |
|
Output |
20-40kg/h |
|
Total weight |
2800kg |
|
Overall size |
6000mm×1600mm×3500mm |
|
Print speed |
0-40m/min |
6.Payment & packing :
1).35%T/T payment of total value in the contract should be paid before production. And 65% T/T balance of total value should be paid before shipment when goods are ready.
2).35 Working days after receiving the deposit by T/T. While the structure of the film blowing machine will be packed with the standard export film ,the spares parts and easy broken parts will be packed with the wooden box.
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
