1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .
2) Auto splicer device realize paper in 150-200 m/min speed exchange without decrease machine line speed
3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple

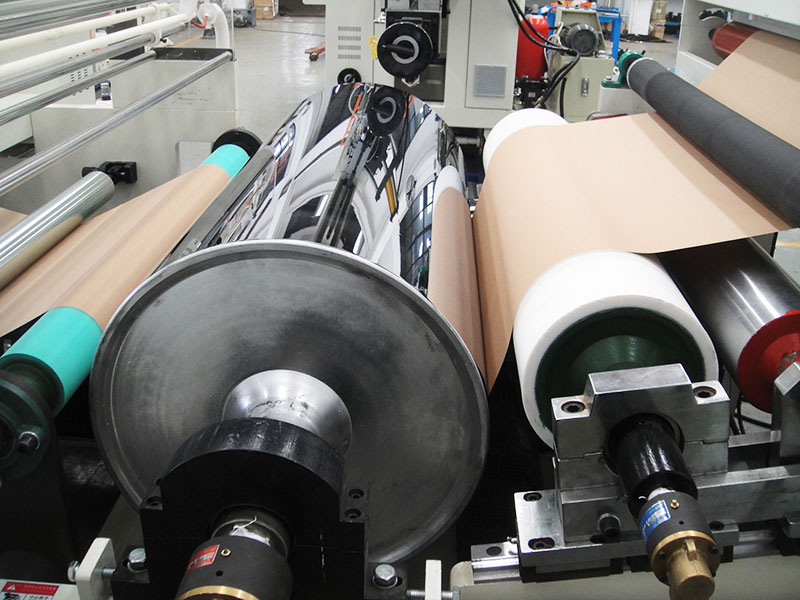

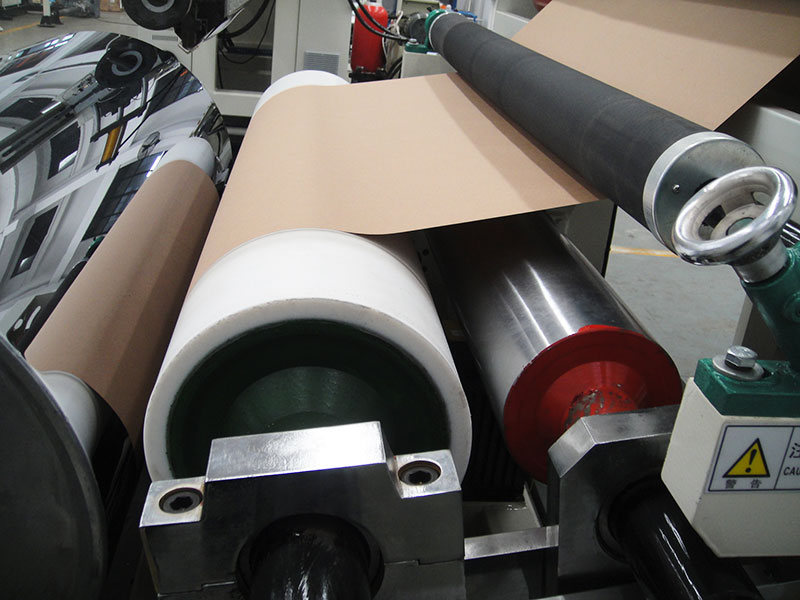

4) Hydraulic lamination structure design (Germany Davis design ) can make coating thinner and firm .
5) Trimming device make the finished coated paper rolls even
6) Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
2.Application
1. Industry adhesive tape(cleaning adhesive tape, Kraft adhesive tape, masking tape, aluminum foil, fiber tape, duct tape, foam tape etc.)
2. Medical protect tape(infusion tape, band-aid, wound tape, protect bandages etc.)
3. Shoes material, clothing accessories(EVA shoes material, hot glue tape film, duct tape etc.)
3.Special material coated composite equipment series
Special pattern transfer coating membrane. Transfer composite fabrics branch. High temperature electronic label applicator. Cloth and sponge compound. Leather and sponge compound. PVC composite with other materials. Composite of coil and sheet. Fire retardant coating composite, etc.
5.Parameters
| Max temperature |
230°c |
|
Coating speed |
2-200m/min |
|
Coating quantity |
5-200g/m2 |
|
Coating width |
200-2500mm |
|
Unwind device |
2 sets |
|
Unwind Dia. |
1000mm |
|
Rewind device |
1 set(double position) |
|
Rewind Dia. |
1000mm |
|
Subtense device |
2 sets |
|
Length |
4800mm |
|
Width |
2400mm |
|
Hight |
1500mm |
|
Installed capacity |
3 phase 4 wire 25kw |
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
FAQ:
Factory located: wuxi city, jiangsu province
