1.Product introduction
①special design of the screw, high output, homo-generous mixing excellent quality.
②Whole consideration & optimum design, easy for operating and maintenance.
③Standardize spare parts, easy to be replaced and easy to equip accessories, such as auto loader, surface static treater(corona) or rotating die device, and etc.
2.Product specification
|
Film width |
300-800mm |
|
Thickness of felm(mm) |
0.01-0.1mm |
|
Output |
50-70kg/h |
|
Total power |
50KW |
|
Overall size |
5000*2800*5000mm |
|
Screw |
Diameter: 70mm |
|
Material: 38CrMoAl, deal with Nitride |
|
|
L/D: 28:1 |
|
|
Heater |
Ceramic heater |
|
Die heat |
Steel #45 |
|
Gear box |
Import from Taiwan(water cooling reducer, hard tooth surface) |
|
Motor |
Shanghai Brand or Zhejiang Brand |
|
Contactor |
DELIXI |
|
Inventor |
Delta brand |
|
Pneumatic element |
Airtac from Taiwan |
|
Rewinding |
Friction rewinding,double rewinding |
3.Product feature and application

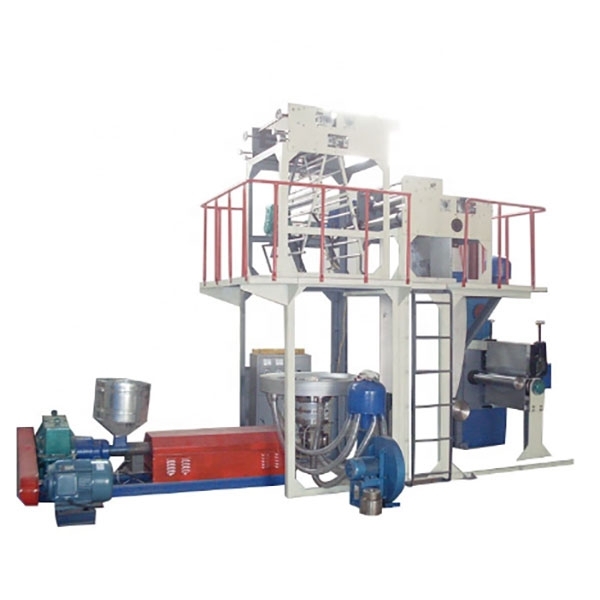

PP film blowing machine is suitable for blowing pp plastic fim, which is widely used for packing foodstuff, garment, electric goods, daily-use articles ect.
5.Production details
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
