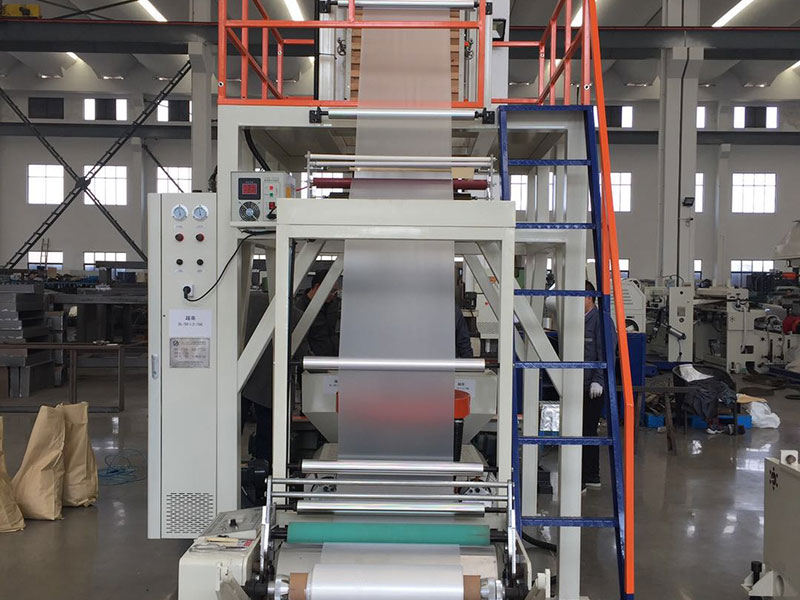

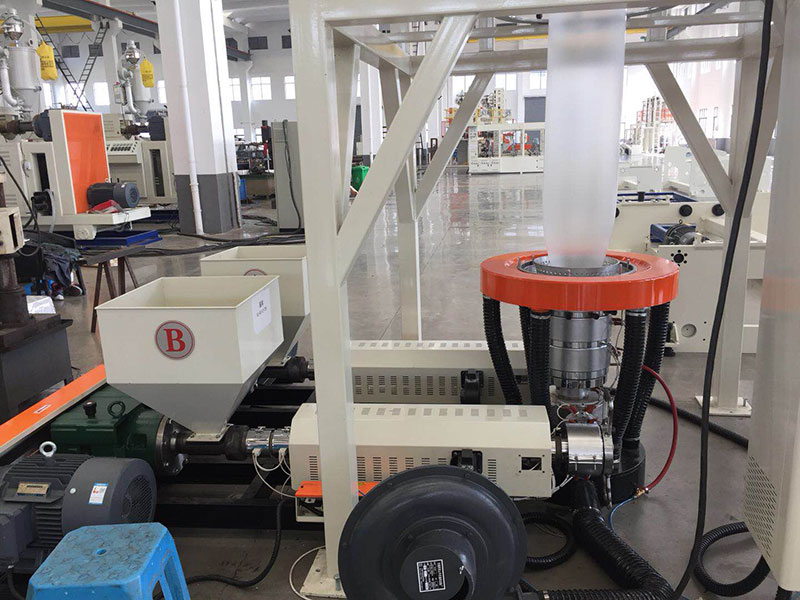

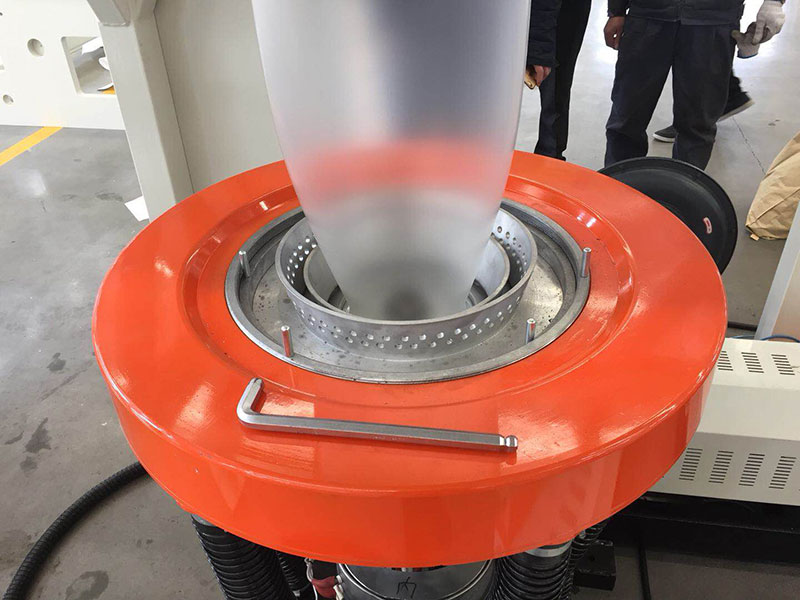

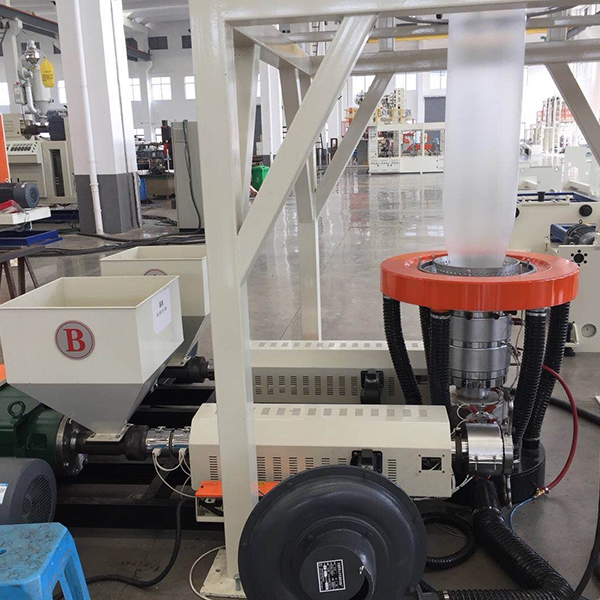

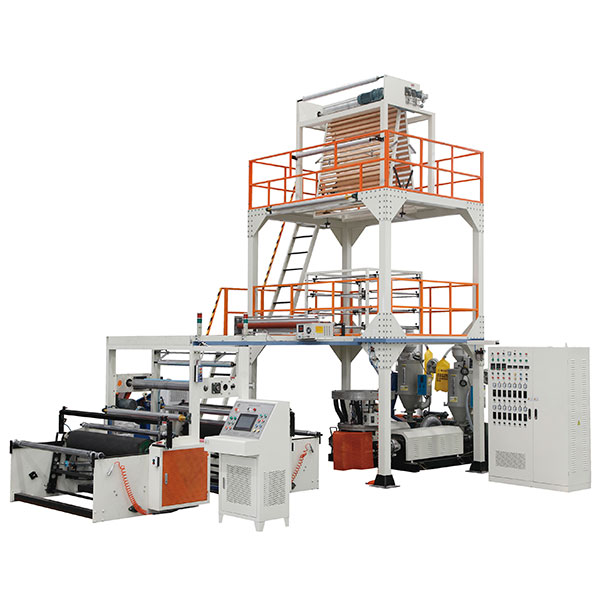

This machine is Double layers PE plastic film blowing machine for blowing two layers or one layer PE(HDPE, LDPE, LLDPE) film; etc.
Two layers PE plastic film has excellent barrier property, this kind film is lot using for packing liquid food, like soft drink, milk, pure water. Etc., and widely used for making bags, like express bags(Such as DHL bags), protecting bags, light-tight bags. etc.
1.Production Details:

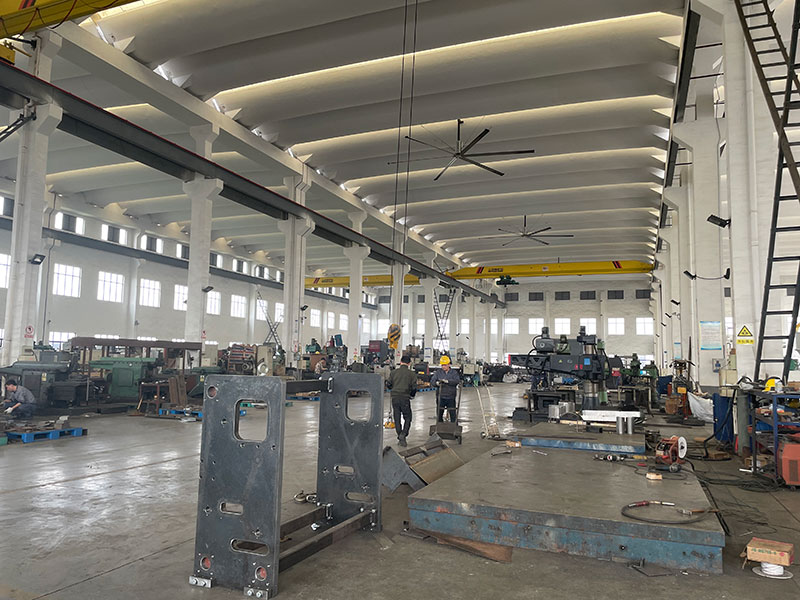

2.Company profile:

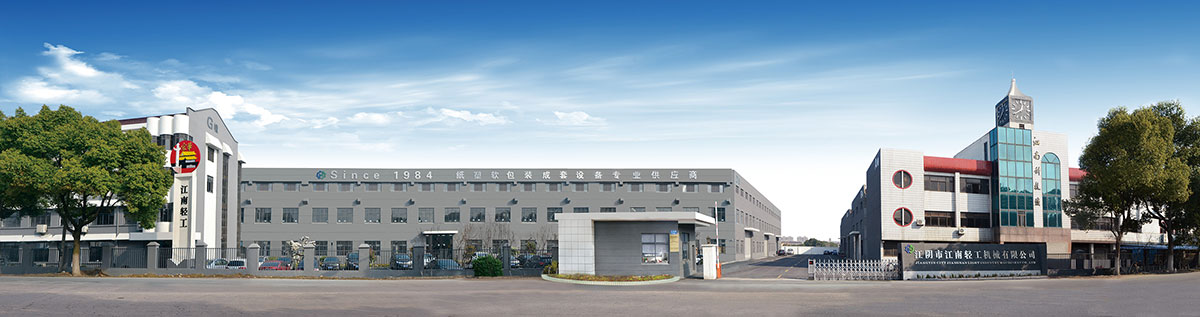

Jiangyin City Jiangnan Light Industry Machinery Co.,Ltd.
Our factory founded in 1984. With 30 years experience , we are the professional manufacture in the field of the soft paper & plastic packing machine.
In 2000, we’ve got more than 30 items’ national invention patent and prsctical New-style patent.
We are keeping moveing want to be better.
Our aim is :’’ Recruitment world passenger and reputation come from the letter, sincerely customize every type of paper and plastic packing machinery for our client and making us obtain progress.
3.Honor:
Jiangnan light industry machinery factory was appraised as “85” National Scientific and Techonological Advanced Toenship Enterprises. In 1990s we were designated as jiang su packing equipment manufacture ,China Food Packing Machinery Cooperative Enterprise, and Our multi-layer coating machine for food industry obtained science and techology innovation fund.
5.Specification :
| Main technical parameter | |
|
Spares |
Details |
|
For example (Type) |
SL-65*2-1500 |
|

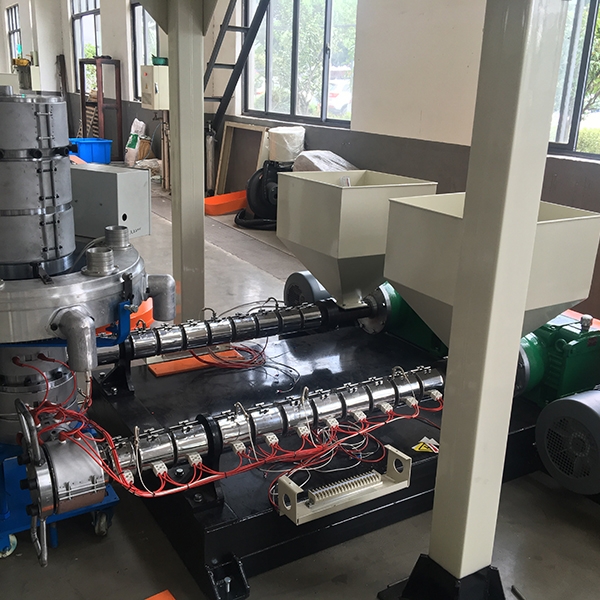

Screw and barrel |
Φ65*2mm, L=30D (Double AB screw match with AB mold ) |
|
Blowing material |
Professional LDPE/LLDPE/PLA and recycled material and so on |
|
Blowing film width |
800mm-1400mm |
|
Blowing film thickness |
LDPE:0.012mm-0.3mm;HDPE:0.01-0.2mm |
|

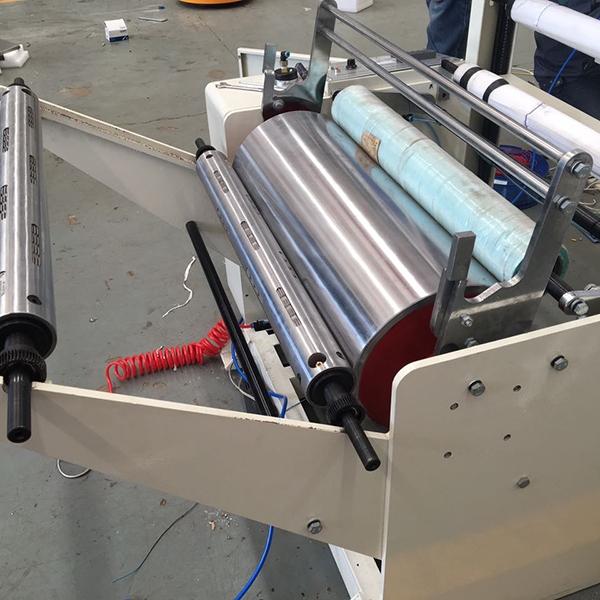

Friction winding,max winding diameter |
800mm |
|
Power |
76 kw |
|
Output |
50-120kg/h |
|
Total weight |
5600kg |
|
Overall size |
7100mm×3200mm×7200mm |
|
Equipment choice customized |
The retory die, double rewind , edge cutting,corona treatment ,customized electrical spares. |
6.Products Advantages
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
