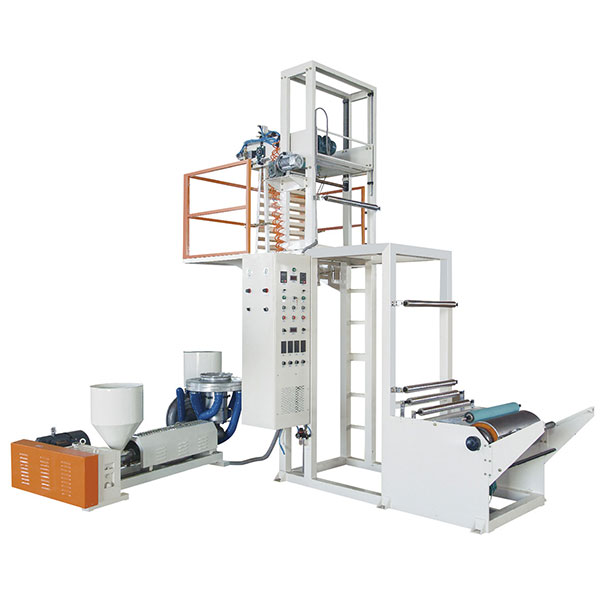

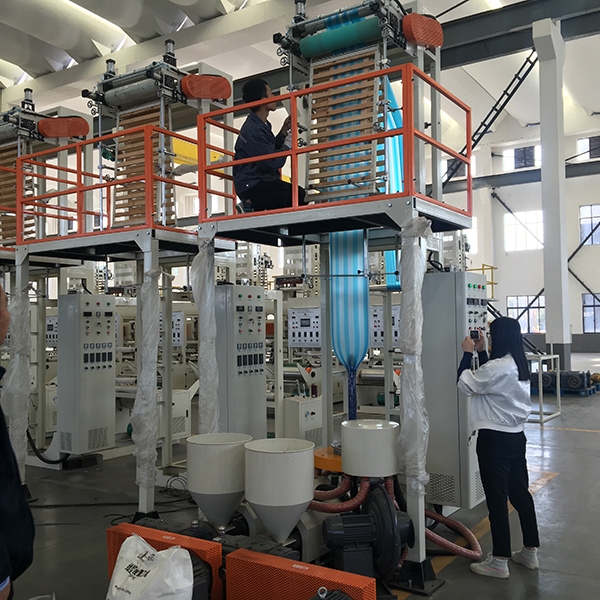

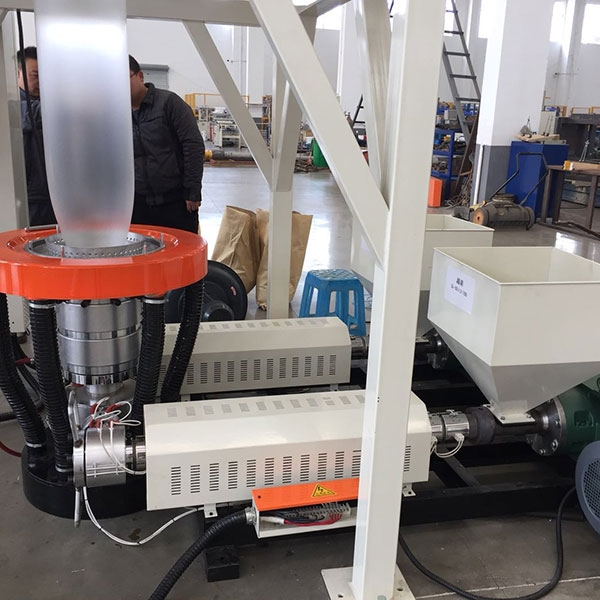

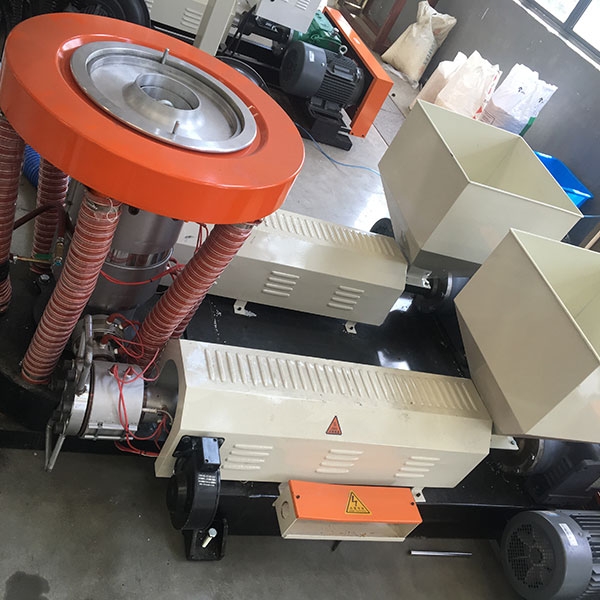

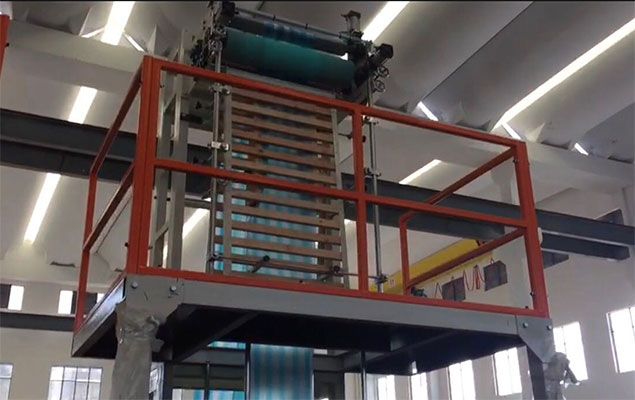

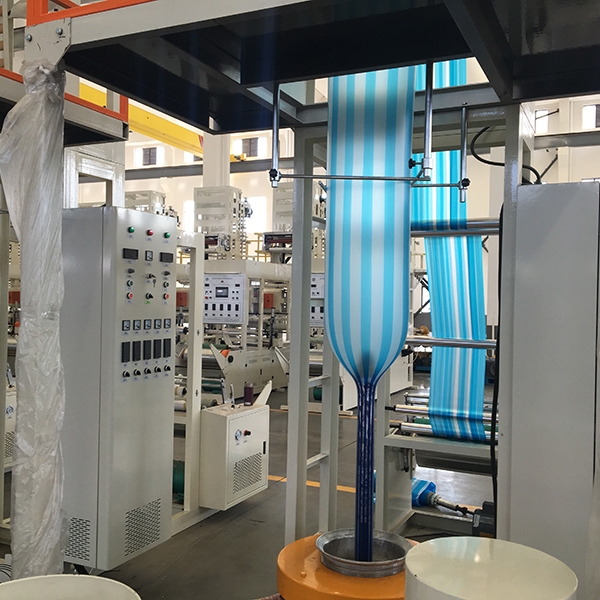

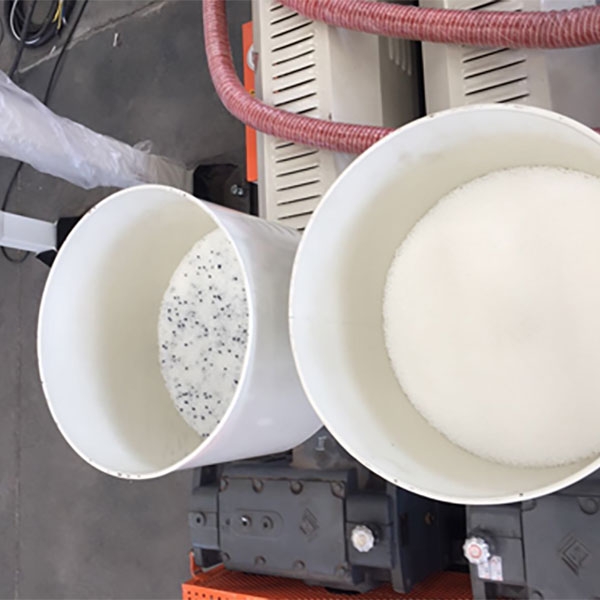

This kind of machine is equipped with two extruders for different kinds of materials. It can be different colors or materials. The forming frame can rise and down at random, this feature makes the operation easy and ensures good quality. The machine is compact structure, easy operation, less occupation of space.
2.Product parameter|
Screw |
Diameter 45mm*2 L=28D Material 38GrMoAl, deal with nitride |
|
Blowing material |
HDPE, LDPE, recycled PE |
|
Blowing film width |
100-650mm |
|
Blowing film thickness |
LDPE: 0.012mm-0.3mm |
|

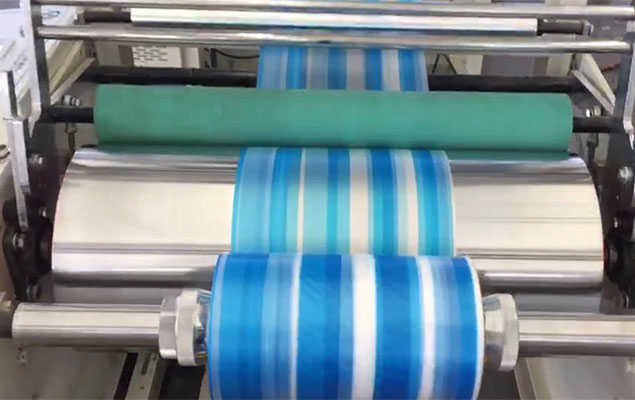

Friction rewinding |
Max winding diameter 600mm |
|
Production capacity |
10-40kg/h |
|
Power |
3p,380v,50hz |
|
Total weight |
2500kg |
|
Overall size |
4800mm*2000mm*3800mm |

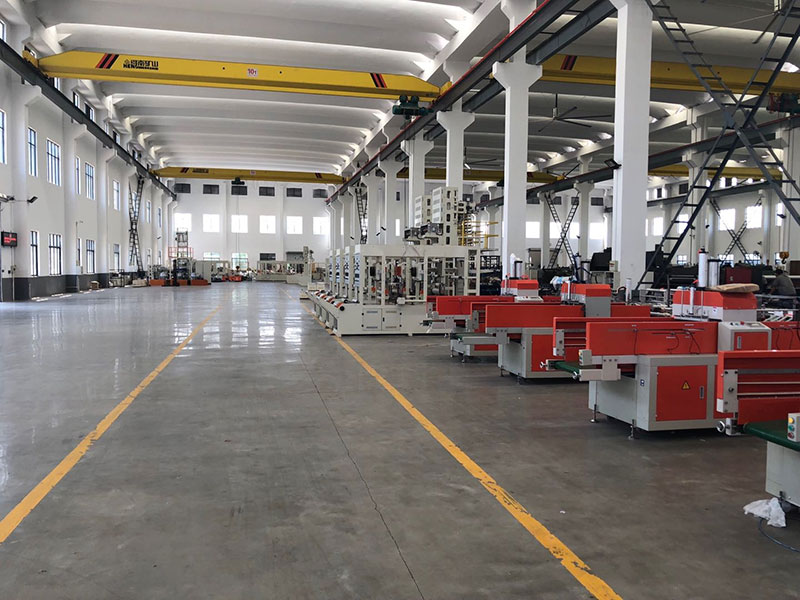

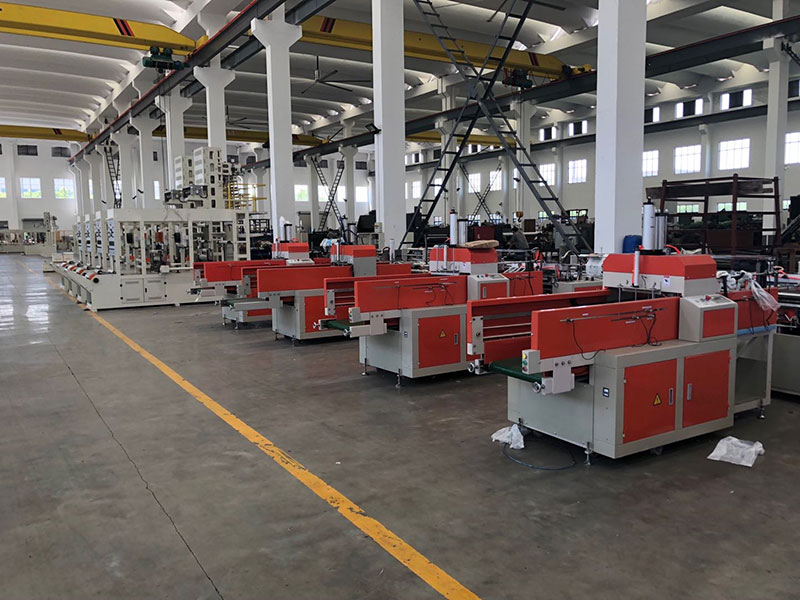

Our company is founded since 1984. Factory has 25000 square meter ground, 15000square meter building. Our aim is “recruitment world passenger and reputation come from the letter, sincerely customize every type of paper and plastic packing machinery for our client and making us obtain progress”.
The machine has good quality and is equipped with good brand spare parts.
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
FAQ:
Factory located: wuxi city, jiangsu province
